XWS-30 - Compact laser plasma broadband light source

In XWS sources, plasma emits light due to the interaction between a continuous energy input from a laser and the gas medium used (optical discharge).
These light sources have been developed as a replacement for traditional gas discharge lamps (Xenon, Deuterium, Tungsten, etc.) and LEDs.
Compared to these, XWS sources have a wider spectral range and higher spectral brightness.

Output configuration: Free space or FCU
Available with Air Cooled Optical Head
External source control and parameters monitoring by Laptop/PC via:
RJ45 (Ethernet, Web interface),
COM-port (RS-232)

• A unique concept of a compact "all in one" source
• Very compact 149 x 166 x 145 mm, no external chiller

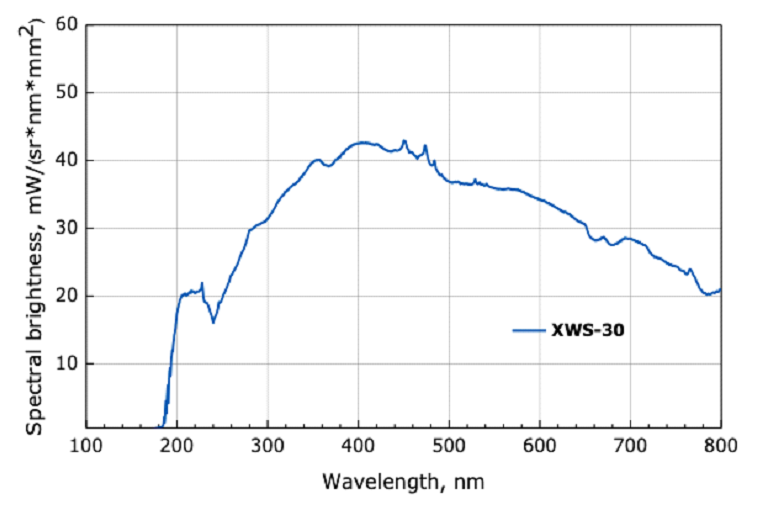

• Spectal brightness up to 48 mW / (mm².sr.nm)
• Spectral range 190 - 2500 nm
• Output configuration - Free space or FCU
• Full system control by laptop / PC Via USB-RS 485 adapter
