KM200PM/M, Kinematic Mount for Wavefront Sensors
KM200PM/M - Kinematic Prism Mount, 53.3 mm Deep, M4 Taps 제품 문의하기| Kinematic Prism Mount Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Item # | Mounting Platform | Adjuster Thread | Adjustment Per Revolution | Post Mounting | Mechanical Drawing | ||
| Maximum Deptha | Tapped Holesb | Clearance Holes | |||||
| KM05PM | 0.70" (17.8 mm) | 4-40 (3 Places) 6-32 (5 Places) | N/A | 3/16"-100 | 13 mrad | 8-32 Tap (2 Places) |  |
| KM100PM | 1.00" (25.4 mm) | 6-32 (8 Places) | N/A | 1/4"-80 | 8 mrad | #8 Counterbore (2 Places) |  |
| KM200PM | 2.10" (53.3 mm) | 6-32 (16 Places) 8-32 (4 Places)c | Ø0.19" (2 Places)d | 5 mrad | #8 Counterbore (6 Places) |  | |
| KM05PM/M | 17.8 mm (0.70") | M3 (3 Places) M4 (5 Places) | N/A | 3/16"-100 | 13 mrad | M4 Tap (2 Places) |  |
| KM100PM/M | 25.4 mm (1.00") | M4 (8 Places) | N/A | 1/4"-80 | 8 mrad | M4 Counterbore (2 Places) |  |

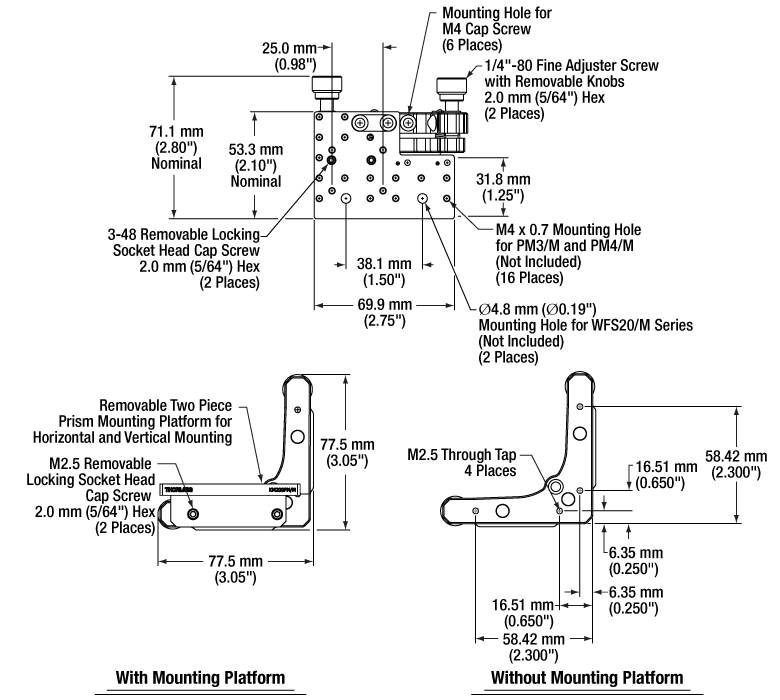

| KM200PM/M | 53.3 mm (2.10") | M4 (21 Places)c | Ø4.8 mm (2 Places)d | 5 mrad | M4 Counterbore (6 Places) |  | |
